Product Overview

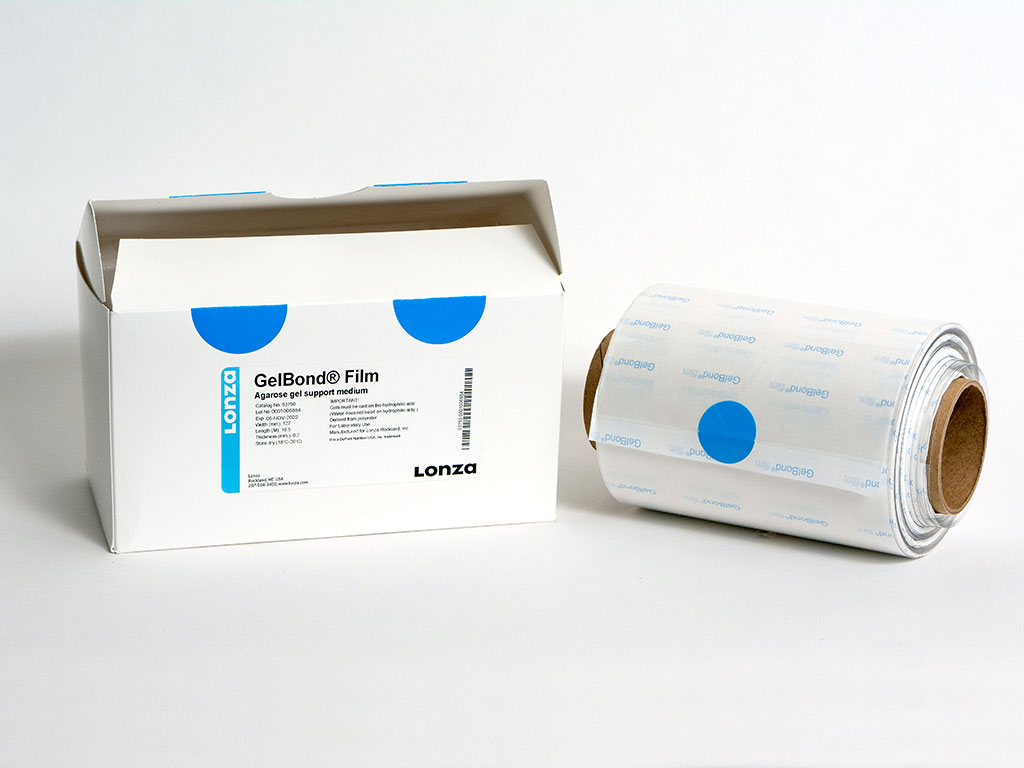

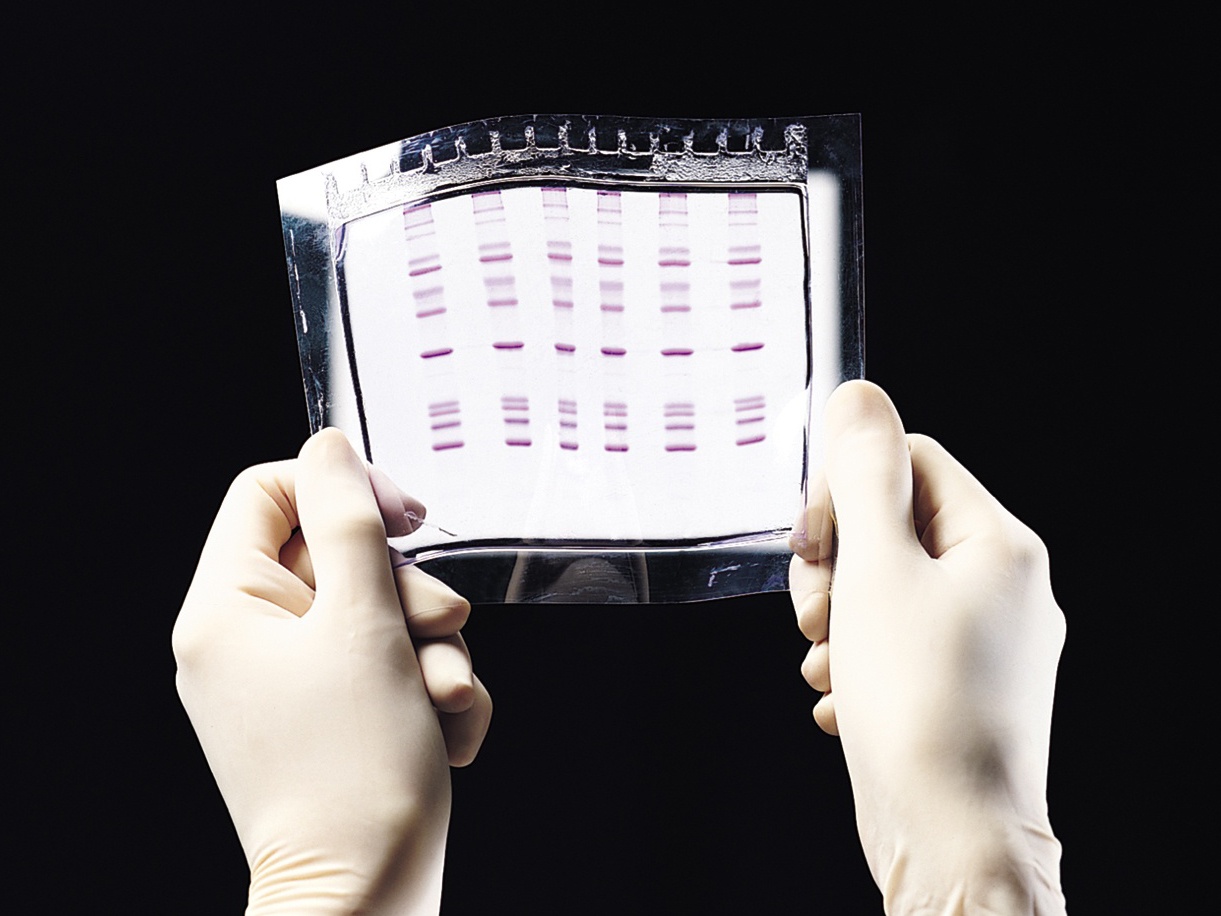

GelBond® Film is a transparent, flexible polyester film designed to support agarose gels. Gels cast on GelBond® Film remain permanently attached to the film through electrophoresis or immunodiffusion and all subsequent fixing, staining, destaining, and drying procedures. GelBond® Film is available either as precut sheets or rolls. Note: Polyester films will not transmit light of less than 310 nm, and will fluoresence at higher wavelengths.
GelBond® Film variants
Format |
Size |
Catalog # |
Sheet |
85 mm x 100 mm |
53734 |
Sheet |
100 mm x 150 mm |
53746 |
Sheet |
110 mm x 125 mm |
53745 |
Sheet |
110 mm x 205 mm |
53748 |
Sheet |
124 mm x 258 mm |
53761 |
Sheet |
125 mm x 245 mm |
53759 |
Sheet |
160 mm x 180 mm |
53749 |
Roll |
102 mm x 16.5 M |
53740 |
Roll |
127 mm x 16.5 M |
53750 |
Roll |
203 mm x 16.5 M |
53780 |
GelBond® PAG Film is available for use with polyacrylamide gels.
Benefits
Reliable - Agarose gels cast on GelBond® Film retain their original dimensions during staining and after drying
Durable - Gels, particularly thin ones, are easier to handle during staining, destaining, and drying when supported
Convenient - Gel orientation can be recorded directly on the GelBond® Film prior to casting.
Applications
DNA/RNA Electrophoresis
Content

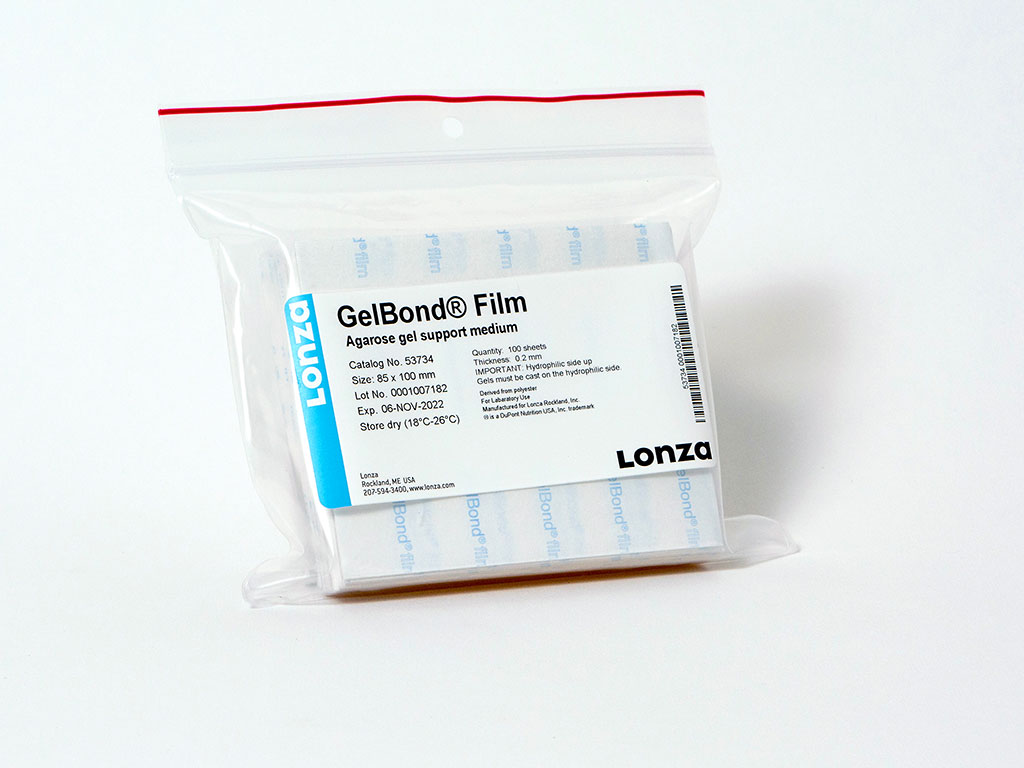

GelBond® Film 100 sheets
Catalog #: 53734 -- 85mm x 100mm
Catalog #: 53736 -- 100mm x 150mm
Catalog #: 53745 -- 110mm x 125mm
Catalog #: 53748 -- 110mm x 205mm
Catalog #: 53761 -- 124mm x 258mm
Catalog #: 53759 -- 125mm x 245mm
Catalog #: 53749 -- 160mm x 180mm
Please email us at cs@medikonia.com for any enquiry. To place an order, please include the catalog number(s) of the product(s) in the email.
