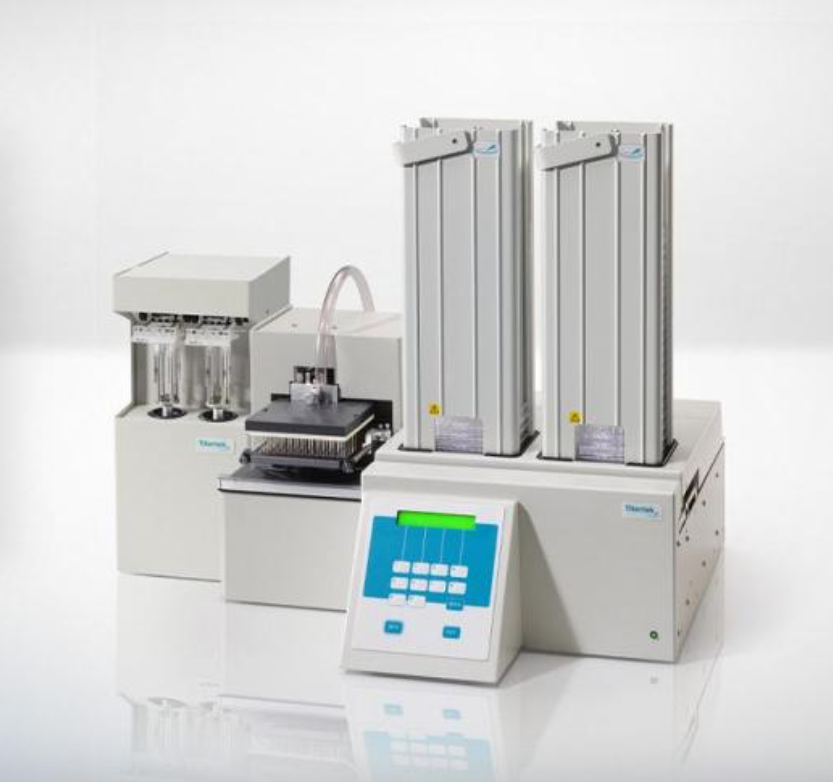

The fastest plate washer

The Zoom HT takes only 17 seconds for a triple wash of a 96 well microplate. Combine this with the stacker that has a unique one-rail plate transfer design which moves the plate a very quickly from the stack to the wash position. This enables the Zoom HT to have a typical throughput of 150 washed plates per hour, or up to 1050 plates per day (3 x 300 µL, 7 h per day).

Dispense module with low dead volume

The optional Dispense Module is an easy-to-install plug-and-play device, is extremely easy to use and requires no calibration. With the addition of a dispense module the Zoom HT Washer becomes an efficient washer-dispenser combination system. The Dispensing Module provides single or dual-channel dispensing of reagents using direct drive and positive displacement syringes to ensure the highest precision and accuracy when dispensing. The dispense module feeds one or two 8- or 16-way manifolds for 96 and/or 384 well microplates.

A single wash head for all plate types

Each wash channel has its own aspirate and dispense tip, which allows simultaneous washing of all 96 wells. The same 96 channel wash head is used for 384 well washing in four quadrants making it unnecessary to purchase different wash heads for different plate types. Rapid positioning of the wash head provides 384 well wash speeds comparable to 384 well channel washers. Large diameter aspirate tips, 3-dimensional (3D) tip positioning and a constant flow rate vacuum pump ensure a smooth and efficient washing experience.

Individual configuration of the washing protocol

There are two wash modes are available, Regular wash mode and Superwash mode (also known as “Overflow mode”). In the regular wash mode, the wash fluid dispensing and evacuation follow each other. In the Superwash mode, the dispensing wash fluid and evacuation are conducted simultaneously creating a continuous wash flow throughout the well. For additional wash procedure optimization, the Zoom HT supports creating and storing of the 3D tip positioning profile for each plate type and assay. This profile defines the aspirate tip horizontal and vertical positions by mapping how the well is aspirated. The speed with which the tip is immersed into the well is adjustable. The possibility of fine-tuning all parameters of the wash procedure allow to wash even loosely adherent cultured cells. With the Zoom HT, residual wash fluid volumes of less than 1 μL/well with the presence of surfactant in the wash fluid can be achieved.

A unique self-emptying liquid discharge system

The discarded wash fluids are captured by a self-emptying waste trap, which allows uninterrupted processing of large plate batches. Biohazard waste management is supported by the automatic addition of a decontamination solution which is continuously drained from the trap.

Easy maintenance

The unique design of the dispense manifold eliminates the need for any special cleaning options such as ultrasonic cleaning. The aspirate head is maintenance free because of the large aspirate tip diameter. This is combined with a continuous vacuum that reliably prevents any accumulation of reagent residue and clogging.

Automatic switch of buffer liquids

The Zoom HT is available in 3 different configurations using a one, two or four wash buffer inlet. This is advantageous for applications that require sequential cleaning with different buffers or for an automatic cleaning routine after using the system.
