Raybiotech Human Angiogenesis Array Q1000 [Cat# QAH-ANG-1000-1/2/3]
Quantibody® Human Angiogenesis Array 1000 Kit. A combination of Human Angiogenesis Array Q2 & Q3. Detects 60 Human Angiogenic Factors. Suitable for all liquid sample types.
Assay Format
Number of Targets Detected: |
60 |
Species Detected: |
Human |
Compatible Sample Types: |
- Cell Culture Supernatants - Cell Lysates - Other Body Fluids - Plasma - Serum - Tissue Lysates |
Design Principle: |
Sandwich-based |
Method of Detection: |
Fluorescence Laser Scanner |
Quantitative/Semi-Quantitative: |
Quantitative |
Solid Support: |
Glass Slide |
Product Specifications
Size: |
1, 2, or 4 Slide Kit (16 sub-arrays per slide) |
||
Protein Information: |
Gene Symbols:
|
||
Product Features: |
- More cost-effective than traditional ELISA - High specificity and system reproducibility - Suitable for diverse sample types - Low sample volume requirement: 100 µL or less - Get results same day (6-hour processing time) - Well-suited for high throughput assays - Q Analyzer software provides one-step computation |
||
Species Detected: |
Human |
Application Notes
Suggested Application:
|
Multiplexed Protein Detection; Biomarker Screening; Identifying Key Factors; Confirming Biological Process; Biomarker Validation; Validation of Antibody Array Results; Quantitative Protein Detection; Establishing Normal Range |

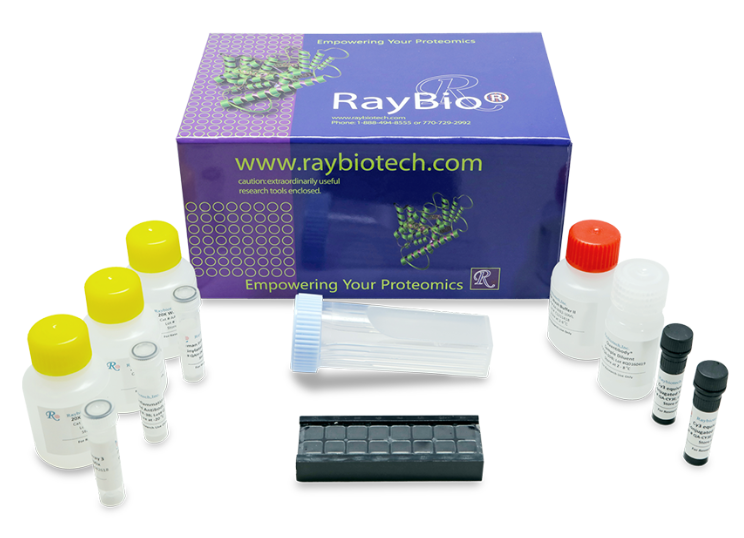

Kit Components:
|
- Human Angiogenesis Array Q1000 Slide(s) - Blocking Buffer - Wash Buffer 1 - Wash Buffer 2 - Lyophilized Standard Mix - Biotinylated Detection Antibody Cocktail - Streptavidin-Conjugated Fluor - Slide Washer/Dryer - Adhesive Plastic Strips - Manual |
Other Materials Required: |
- Distilled or deionized water - Small plastic boxes or containers - Pipettors, pipette tips and other common lab consumables - Orbital shaker or oscillating rocker - Aluminum foil - Gene microarray scanner or similar laser fluorescence scanner |
Protocol Outline: |
1. Dry the glass slide |
Don't have a compatible scanner? RayBiotech now offers FREE scanning service for all RayBio glass slide antibody arrays! Contact Us To Learn More
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array slide(s), standard mix, detection antibody cocktail, and Cy3-Conjugated Streptavidin at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
Usage
This product is furnished for LABORATORY RESEARCH USE ONLY.
Not for diagnostic or therapeutic use.
