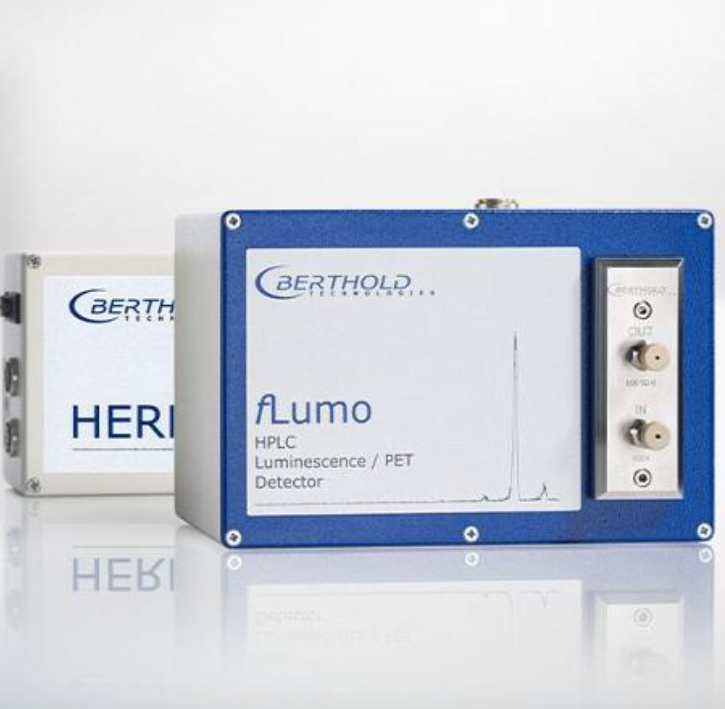

Berthold HERM LB 500 with fLumo detector
The HERM is a dedicated radio HPLC monitor which can be connected to different detectors. Providing flexibility, reproducibility and sensitivity, the HERM offers a safe and user-friendly solution for quality control laboratories. The HERM with fLumo Chemiluminescence detector for HPLC systems uses a highly sensitive head-on photon counting detector with low background which is perfect for PET quality control, among other applications. Different measuring cells can be used to adapt for flow rates, activities and isotopes. For gamma and high energy beta isotopes, the HERM with NaI detector is available.
The HERM makes integration into your existing HPLC system easy. The PC connection can be established instantly via the USB port. By using the analog 0-1 V output, the HERM can be integrated into every HPLC system. In addition, its compact design makes it easy to fit in a hot cell.
In the fLumo detector the low noise head-on PMT has been designed to face the sample coil directly. The result is a high sensitivity detector for even the faintest traces of chemiluminescence signals.
The use of specific measuring cells simplifies the measurement of high activity PET isotopes even in high background laboratories.
A bulky and heavy lead shielding is not required as the system is insensitive to 511 keV gamma. Available cells include:
The HERM system can be installed in multiple distinct configurations, providing more flexibility and convenience. The comfortable stand-alone configuration provides an analog signal which can be easily integrated into an existing HPLC system. The system is equipped with a flash memory and a powerful CPU. Alternatively, the system can be installed in the PC-controlled configuration via a USB connection for digital data acquisition.
The HERM Controller is the software interface to the instrument; it controls all functions and collects the data. The RadioStar software combines the ability to run sophisticated measurements with a user-friendly operation and user interface. In addition, a Chromeleon™ driver is available. Chromeleon™ is known as a very versatile chromatography software package supporting many different hardware solutions. The driver is fully certified and digitally signed by Thermo Scientific™ and runs with versions 6.x and 7.x.
Year | Authors | Journal | Title |
---|---|---|---|
2021 |
Anton A. Larenkov, Artur G. Makichyan, and Vladimir N. Iatsenko |
Molecules | |
2020 |
Laurent Besret, Sébastien d’Heilly, Cathy Aubert, Guillaume Bluet, Florence Gruss-Leleu, Françoise Le-Gall, Anne Caron, Laurent Andrieu, Sylvie Vincent, Maysoun Shomali, Monsif Bouaboula, Carole Voland, Jeffrey Ming, Sébastien Roy, Srinivas Rao, Chantal Carrez,and Erwan Jouannot |
EJNMMI Research | |
2020 |
Anton Larenkov, Marat Rakhimov, Kristina Lunyova, Olga Klementyeva, Alesya Maruk and Aleksei Machulkin |
Molecules |
Pharmacokinetic Properties of 68Ga-labelled Folic Acid Conjugates: Improvement Using HEHE Tag |
2019 |
Richard L. Hesketh, Jiazheng Wang, Alan J. Wright, David Y. Lewis, Alice E. Denton, Richard Grenfell, Jodi L. Miller, Robert Bielik, Marcel Gehrung, Maria Fala, Susana Ros, Bangwen Xie, De-en Hu, and Kevin M. Brindle |
Cancer Research |
Please email us at cs@medikonia.com for any enquiry. To place an order, please include the catalog number(s) of the product(s) in the email.
