For the rapid and efficient concentration of total proteins from urine samples

• Simultaneous concentration, desalting and buffer exchange of total urinary proteins

• No molecular weight cutoff allows for isolation of all sizes of proteins and peptides

• Purification is based on spin column chromatography that uses Norgen’s resin separation matrix

For research use only and NOT intended for in vitro diagnostics.

ProteoSpin™ Urine Protein Concentration Kits

These kits concentrate urine proteins while simultaneously removing salts, urea, and other urine contaminants. There is no molecular weight cut-off and therefore the columns capture total urinary proteins and peptides of all sizes making them ideal for biomarker discovery work, differential expression of proteins in various diseases, or other diagnostic research. The columns are convenient, rapid and easy to use and thus offer significant time savings over classic dialysis protocols. The resulting high-quality protein sample is concentrated and free from the original sample salts, thus preparing the sample conveniently for downstream proteomic applications including SDS-PAGE, 2D Gels, MALDI-TOF, LC/MS, LC/MS/MS, whole protein mass spectrometry, western blotting, protein microarrays, and more.

ProteoSpin™ Urine Protein Concentration Micro Kit (25 preps) (Catalog #: 17400)

Each spin column is able to concentrate and desalt up to 200 μg of urine proteins. Twelve samples can be processed in 20 minutes.

ProteoSpin™ Urine Protein Concentration Midi Kit (10 preps) (Catalog #: 52300)

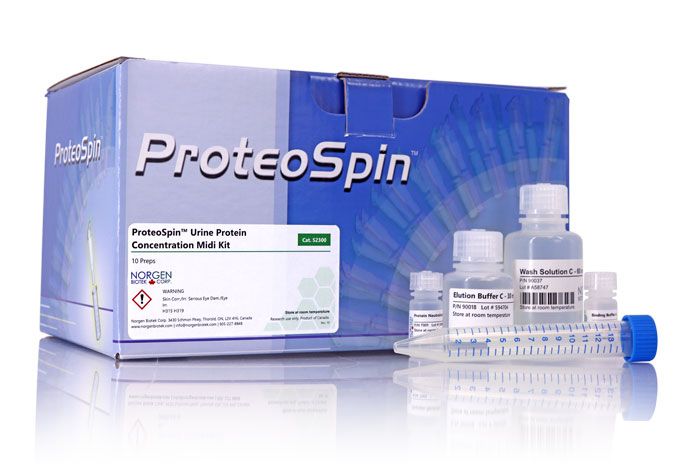

The ProteoSpin™ Urine Protein Concentration Midi Kit provides a fast and simple procedure for concentrating dilute solutions of urine proteins from 1 to 5 mL inputs of urine. Each mini spin column is able to concentrate and desalt up to 3 mg of urine proteins in 30 minutes.

ProteoSpin™ Urine Protein Concentration Maxi Kit (4 preps) (Catalog #: 21600)

The ProteoSpin™ Urine Protein Concentration Maxi Kit provides a fast and simple procedure for concentrating dilute solutions of urine proteins from 2 to 20 mL inputs of urine. Each maxi spin column is able to concentrate and desalt up to 4 mg of urine proteins in 45 minutes.

Kit Specifications --Micro Kit (25 preps) (Catalog #: 17400)

Maximum Urine Input Volume: 1 mL

Maximum Recovered Protein: 200 μg

Elution Volume: 100 μL

Time to Process 12 Samples: 20 minutes

Kit Specifications --Midi Kit (10 preps) (Catalog #: 52300)

Minimum Urine Volume Input: 1mL

Maximum Urine Input Volume: 5 mL

Maximum Recovered Protein (5 mL Urine): 3 μg*

Elution Volume: 200 - 1000 μL

Time to Process 10 Samples: 30 minutes

 *Yield will depend on the health status of the donor.

Kit Specifications --Maxi Kit (4 preps) (Catalog #: 21600)

Maximum Urine Input Volume: 20 mL

Maximum Recovered Protein: 4 μg

Minimun Elution Volume: 2 mL

Time to Process 4 Samples: 45 minutes

Storage Conditions and Product Stability
All solutions should be kept tightly sealed and stored at room temperature. Once opened, the solutions should be stored at 4°C. This kit is stable for 2 years after the date of shipment.

Catalog #: 21600 -- Maxi Kit (4 preps)

Catalog #: 52300  -- Midi Kit (10 preps)

Catalog #: 17400  -- Micro Kit (25 preps)
