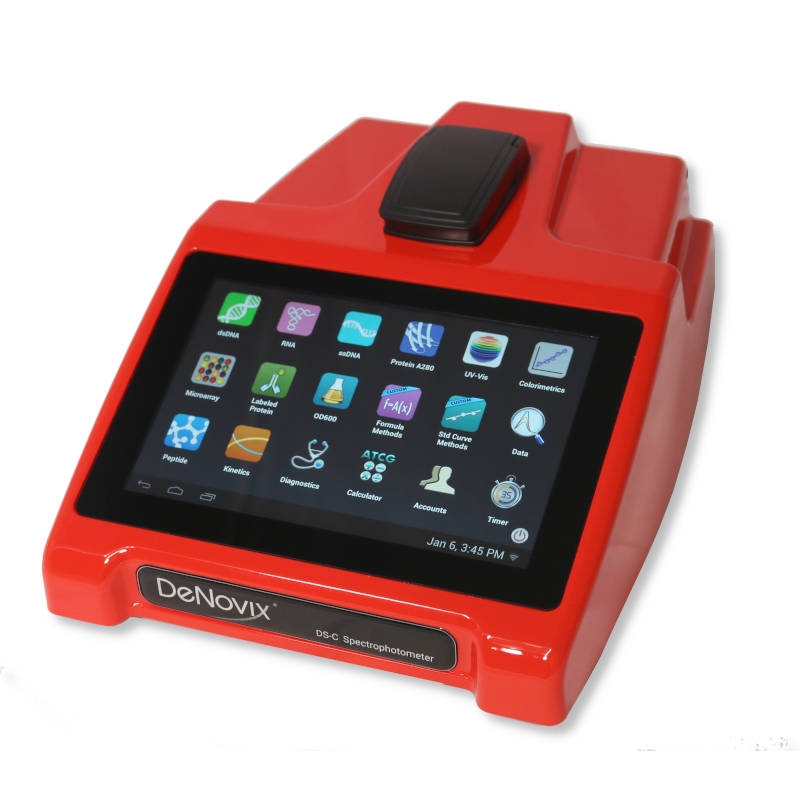

DeNovix DS-C Cuvette Spectrophotometer
The DeNovix DS-C is an easy-to-use UV-Vis cuvette spectrophotometer with outstanding dynamic range, sensitivity and flexibility. Rapidly quantify biomolecules using any cuvette with an 8.5 mm z-height. The instrument includes preinstalled EasyApps for nucleic acids, proteins, colorimetrics assays, OD600, Kinetics, Custom Methods and more.
The DeNovix DS-C is an easy-to-use UV-Vis cuvette spectrophotometer with outstanding dynamic range, sensitivity and flexibility. Rapidly quantify biomolecules using any cuvette with an 8.5 mm z-height. The instrument includes preinstalled EasyApps for nucleic acids, proteins, colorimetrics assays, OD600, Kinetics, Custom Methods and more.
The DS-C features the most powerful and intuitive software in its class. Pre-installed DeNovix EasyApps™ software and a breakthrough Custom Linux™ OS touchscreen interface ensure error-free operation and sample results under 2 seconds. Every instrument is ready right out of the box.
Built-in Wi-Fi, Ethernet and USB allow easy export of the data you want in the format you need. 32 GB of memory allows storage of millions of results!
Create simple kinetics methods measuring two absorbance wavelengths over a user-defined measurement frequency and period. EasyApps streamlines the process to create and save custom methods and enables cuvette temperature control between and 37° and 45° C.
The high-particulate nature of bacterial cell cultures benefit from a longer measurement pathlength. The particulates in these samples scatter light, and a 10mm pathlength provides a longer cross-section of the sample for the spectrophotometer’s light beam to travel through. This ensures the highest degree of accuracy and reproducibility when measuring these types of samples.
EasyApps Secure provides an optional suite of software controls that allow regulated GxP facilities to easily add DS-11 Series instruments to their compliant workflows (view the compliance statement). The software is fully integrated within the on-board operating system and includes a range of features essential to ensuring compliance, including:
Beam height | 8.5 mm |
Heating | 37-45 °C +/- 0.5 °C |
Pathlength | 10, 5, 2, 1, 0.5, 0.2, 0.125 mm |
Absorbance Range | 0.0008-1.5 AU (1 cm) |
Maximum Concentration | 75 ng/µl dsDNA (1 cm) |
Detection Limit | 0.002 mg/ml BSA; 0.04 ng/µl dsDNA (1 cm) |
Light Source | Pulsed Xenon flash lamp |
Detector Type | 2048 element CCD |
Wavelength Range | 190-840 nm |
Wavelength Accuracy | 0.5 nm |
Spectral Resolution | 1.5 nm (FWHM at Hg 253.7 nm) |
Absorbance Precision | 0.015 AU (1 cm), or 1%, whichever is greater |
Absorbance Accuracy | 1.5% at 0.75 AU at 260 nm |
Light Sources | UV LED (~375 nm), Blue LED (~470 nm), Green LED (~525 nm), Red LED (~635 nm) |
Excitation Filters | UV: 361-389 nm, Blue: 442-497 nm, Green: 490-558 nm, Red: 613-662 nm |
Emission Filters | 435-485 nm , 514-567 nm, 565-650 nm, 665-740 nm |
Detectors | Photodiode, detection range 300-1000 nm |
Tube Type | 0.5 mL Real Time thin-wall PCR tube (polypropylene) |
Operating System | Custom Linux® OS |
CPU | Quad-core Cortex-A72 |
Display | 7″ high definition color display |
User Input | Touch screen with swipe and pinch motion; glove compatible |
Internal Storage | 32GB flash drive |
Connectivity | 2 USB ports for printer, barcode reader and USB drive |
Networking | Ethernet and Wi-Fi |
Colors | Arctic White |
Measurement Time for Spectrophotometry | 2 seconds |
Measurement Time for Fluorescence | 2 seconds |
Footprint | 20 cm X 27 cm |
Weight | 1.5 kg |
Operating Voltage | 12 VDC |
Operating Power Consumption | 10 W; max 30 W |
Approvals | CE, UL/CSA, FCC and Japan CAB |
Manufacture Location | USA |
Download the Product Brochure here for more information.
For more information or ordering the products, please email us at cs@medikonia.com.
