ULTRASENSITIVE. RELIABLE. COMFORTABLE.

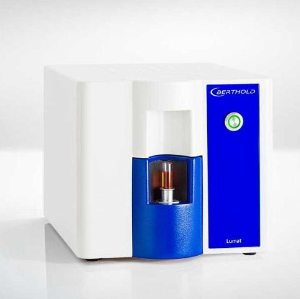

The Lumat LB 9510 offers the functionality, versatility and superior performance you can expect from a luminometer developed by Berthold Technologies. The optimized optical system provides true single photon counting combined with a low-noise photomultiplier tube for up to 6 decades of linear dynamic range. The new Lumat has all the key features needed for today’s research applications.
GET MORE INFORMATION
Ready to meet your application needs
The new Lumat is a tube luminometer that uses state-of-the-art technology based on more than 40 years of experience engineering and designing luminometers. The luminometer supports all basic luminescence technologies including:
Flash-type Luminescence
Glow-type Luminescence
Bio-Luminescence
Chemi-Luminescence
Highlights
Luminescence detection at its best
Thanks to a stringent selection of photomultipliers working in photon counting mode and more than 40 years of experience building luminometers , the new Lumat offers excellent luminescence sensitivity: <1 zmol firefly luciferase and <1 amol ATP/tube (high sensitivity model) can be reliably detected.
JET injectors - highest accuracy, speed and cell-friendliness
The Lumat can be equipped with up to 2 JET injectors with variable volumes. The ultra-fast injection speed of JET-injectors eliminates any delay between injection and measurement and is critical to measure fast reactions, e.g. for flash luminescence measurements.
Berthold Technologies' JET injectors use Teflon bellows for accurate and fast injections and guarantee most efficient mixing as well as extreme longevity.

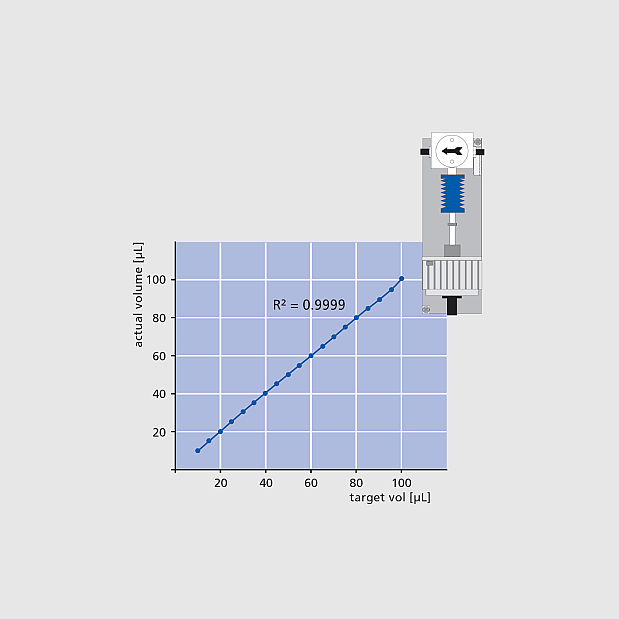

Accurate pipetting of small volumina: regardless of whether you want to inject large or small volumes, JET injectors ensure high accuracy and more than 98% accuracy over the entire volume range
Low maintenance costs: frictionless operation for extended lifetime
Cell-friendly performance: cell-friendly materials and negligible shear forces enable worry-free injection of cell suspensions, e.g. in Aequorin-based calcium assays
Convenient sample switching mechanism
The measurement of individual samples one after the other can be time-consuming. The Lumat has a turret mechanism that makes this job easier and increases your throughput. Thanks to its motor-driven revolving magazine mechanism based on a rotating chamber for two tubes (one for measuring and one for loading and unloading), so you can prepare and insert the next sample while the previous one is still measuring.
Convenient Software options
Berthold Technologies’ ICE software is a wizard-driven software that is very simple to use. There are several versions of ICE sotware available:
ICE Research for single, dual and kinetics measurements.
ICE Immunoassay for single measurements with curve fitting and cut-off evaluation.
ICE Advanced to combine all capabilities of both ICE Research and Immunoassay.
Technical Details
Measurement
Detectors
Low-noise photomultiplier tube in single photon counting mode
Detection technologies
Luminescence
Measurement modes
Endpoint, Kinetics
Spectral range luminescence
380-630 nm
Injectors
Injectors
Up to 2 JET injectors with frictionless operation
Injector volume
10-100 µL or 25-300 µL
Injector speed
200-440 µL/s
Injector accuracy
Better than 2% across the entire volume range
Injector precision
Better than 2% across the entire volume range
Sample Formats
Tube formats
Luminescence tubes, 12 x 47 mm
Luminescence tubes, 12 x 55 mm
Luminescence tubes, 12 x 75 mm
Microcentrifuge tubes, 1, 1.5 and 2 mL
Performance
Luminescence sensitivity
Standard model: <5 amol ATP/tube
High-sensitivity model: <1 amol ATP/tube
Dynamic range
≥6 orders of magnitude
Operation
Interface
Windows software, connected to computer by USB
Operating system
Windows 10 or better
Available software packages
ICE Research for single, dual and kinetics.
ICE Immunoassay for single measurements with curve fitting and cut-off evaluation.
ICE Advanced to combine all capabilities of both ICE Research and Immunoassay.
Additional Specifications
Regulations
CE, NRTL
Power Supply
100 – 240 VAC ±10 %, 50/60 Hz
External auto ranging mains adaptor
Temperature tolerance
Storage: 0-40° C
Operation: 15-35° C
Transport: –20 °C to 50 °C
Humidity tolerance
10-80% non-condensing
Maximum relative humidity of 80 % for temperatures up to 31 °C; decreasing linearly to 50 %, relative humidity up to 40 °C
Altitude
max. 2000 m (above sea level)
Dimensions (W x D x H)
240 x 280 x 220 mm
Weight
4 kg
Download the Product Brochure for more information.
