The Mobile Solution



High performance luminescence measurement, wherever you need it



The Junior is a small portable tube luminometer which can be used for all common applications using glow type bioluminescent and chemiluminescent reagents. Excellent performance, small size, low weight and battery-powered mode make it an ideal partner whenever mobility counts - in the laboratory, on site or outdoors. The Junior can be used for a wide range of fields, including biomedical research, clinical diagnostics, hygiene monitoring, process control in biotechnology, environmental monitoring (e.g. water quality) and others.



Highlights





Research-level performance in portable format



Most portable luminometers are designed only to discriminate if an area is contaminated or not, and hence offer low sensitivity and reduced dynamic range. In contrast, the Junior offers a performance similar to those of laboratory tube luminometers: it can detect less than 50 amol ATP/tube and has a dynamic range larger than 6 orders of magnitude.





Always up and running

The Junior can be operated independently from a mains supply for many hours, as it is equipped with rechargeable batteries; spare battery sets are available, so you can continue working for as long as you need. In the lab, the instrument can be connected to a mains supply thereby automatically recharging the batteries.

















---



Easy to carry

With a weight of only 2 Kg and its small size the Junior can be carried and taken to the sampling location for measurements on site. A metal transport case providing space for the Junior and accessories is an ideal solution for outdoor use.

































---

Technical Details



Measurement



Detectors	Photomultiplier tube in single photon counting mode
Detection technologies	Luminescence
Measurement modes	Endpoint
Spectral range luminescence	380-630 nm





Sample Formats



Tube formats	Luminescene tubes, 12 x 47 mm Luminescene tubes, 12 x 55 mm Luminescene tubes, 12 x 75 mm Microcentrifuge tubes, 1, 1.5 and 2 mL Capped vials, 4 mL (14 x 54 mm)





Performance

Luminescence sensitivity	Standard model: <1 fmol ATP/tube High-sensitivity model: <50 amol ATP/tube
Dynamic range	>6 orders of magnitude





Operation

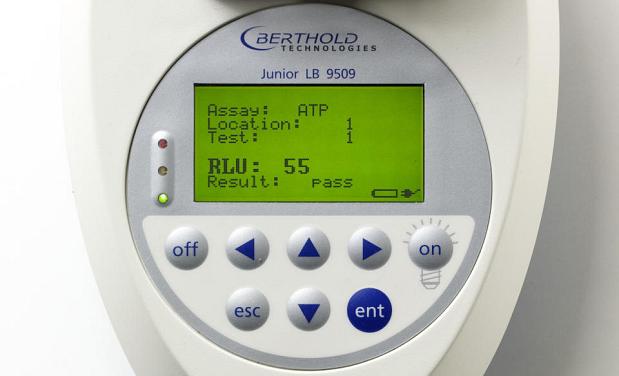

Interface	Built-in software operated via keypad WinTerm (optional) for data transfer to Windows, connected to computer by USB
Operating system	Windows 7 or better





Additional Specificaiton



Regulations	CE
Power Supply	110-240 V, 50/60 Hz, 35 VA
Temperature tolerance	Storage: 0-40° C Operation: 15-35° C
Humidity tolerance	10-90% non-condensing
Dimensions (W x D x H)	150 x 280 x 170 mm
Weight	2 kg



Applications



The Junior is suitable for a wide range of applications, including:

• ATP quantification
• Hygiene monitoring
• Reporter gene assays
• Luminescent immunoassays
• Mycoplasma detection
• Toxicity and mutagenicity of water samples



---



Download the Product Brochure for more information.
