Product Overview

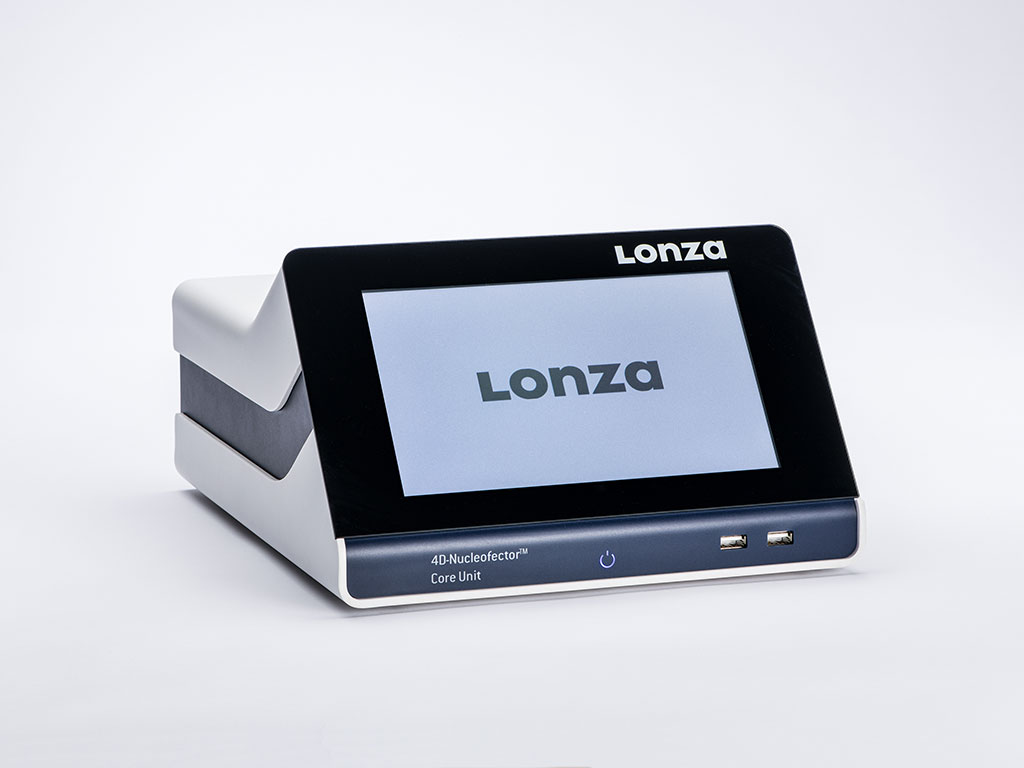

The 4D-Nucleofector^® Core Unit is the controlling unit of the 4D-Nucleofector^® System. The different functional units can be added in a modular way to the 4D-Nucleofector^® Core Unit and each is suited for different applications:

• X Unit: Supporting Nucleofection^® of various cell numbers in different formats (16-well Nucleocuvette^® Strips or 100 µL Nucleocuvette^® Vessels
• Y Unit: Enabling adherent Nucleofection^® in 24-well culture plates
• LV Unit: Large-scale transfection of up to 1x10⁹ cells
• 96-well Unit: Higher throughput Nucleofection^® Experiments in 96-well Nucleocuvette^® Plates

Transfections per minute:

• X Unit (16-well Nucleocuvette^® Strips): 16-32 reactions
• X Unit (100 µL Nucleocuvette^® Vessels): 20-26 reactions
• Y Unit (Dipping Electrodes): 8-10 reactions
• LV Unit (LV Nucleocuvette^® Cartridges): 2-3 mL
• 96-well Unit (96-well Nucleocuvette^® Plate): 32 - 44 reactions

There are cell type-specific Optimized Protocols or recommendations available in our knowledge database. In these Optimized Protocols the best Nucleofectio^® Conditions are indicated. In addition, we share our experience and knowledge for treatment of individual cell types.

Technical Specifications

Dimensions: (w x h x d): 24.5×14.7×28 cm / 9.7×5.8×11.0

Weight: 4.4 kg ( 9.7 lb)

Power: 100 - 240 VAC

Frequency: 50 - 60 Hz

Consumption: 0 VA (power off) / 20 VA (idle) / 140 VA (busy - during transfection)

Fuse: T 2.5A, L250V

Operating temperature: +15°C up to +40°C (59°F - 104°F)

Environment non condensing

Voltage limitation: 1500 V

Current limitation: 100 A

Compatibility

The Core Unit can be used to operate the following functional units:

• X Unit
• Y Unit
• LV Unit
• 96-well Unit

This Core Unit is not compatible with the 96-well Shuttle^TM Add-on

Benefits

• Controls attached functional units
• 8’’ touch screen to operate the system
• Intuitive operation software for seamless designing and saving individual experimental setups
• Includes USB and network connectivity for software update and data transfer

Applications

Controlling the 4D-Nucleofector^® System

Content & Storage

Content

1 Unit

Catalog #: AAF-1003BC

Please email us at cs@medikonia.com for any enquiry. To place an order, please include the catalog number(s) of the product(s) in the email.
