Product Overview

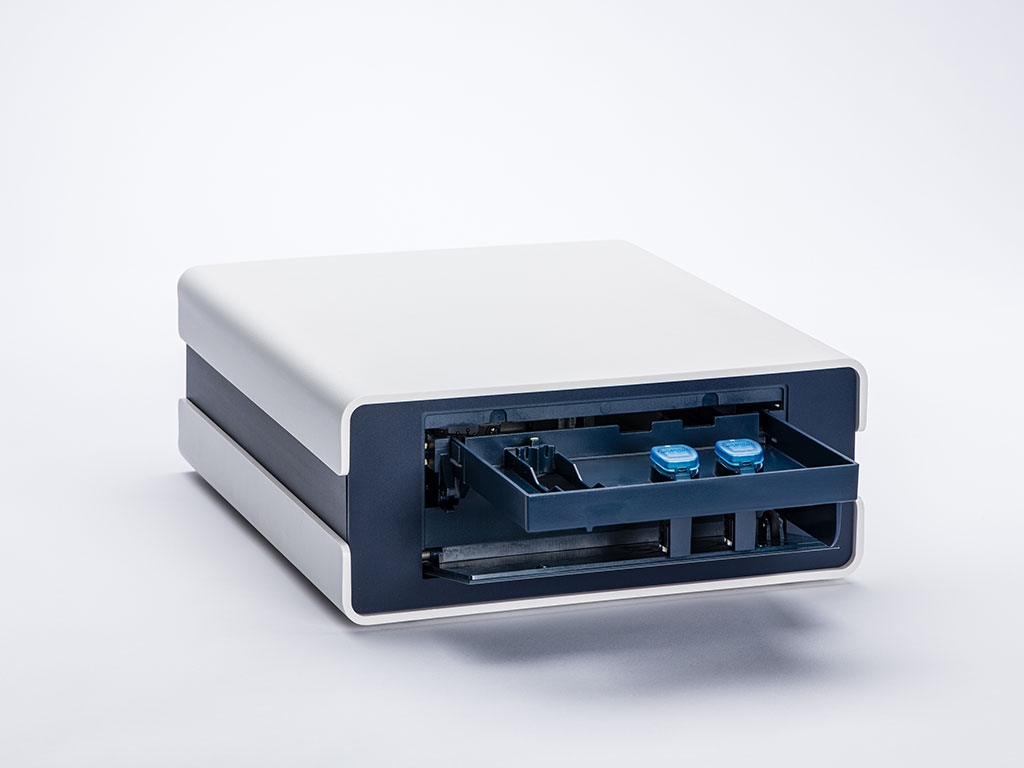

The 4D-Nucleofector^® X Unit is one of the four functional modules of the 4D-Nucleofector^® System. It supports Nucleofection of various cell numbers (2 x 10⁴ to 2 x 10⁷) cells in different formats.

There are cell type-specific Optimized Protocols or recommendations available in our knowledge database. In these Optimized Protocols the best Nucleofection conditions are indicated. In addition, we share our experience and knowledge for treatment of individual cell types.

Technical Specifications

Dimensions: (w x h x d) 24.5 × 10.5 × 28 cm / 9.7 × 4.1 × 11.0 in

Weight: 4.7 kg (10.4 lb)

Power: 100 - 240 VAC

Frequency: 50 - 60 Hz

Consumption: 0 VA (power off) / 20 VA (idle) / 140 VA (busy - during transfection)

Fuse: T 2.5A, L250V

Operating temperature: +15°C up to +40°C (59°F - 104°F)

Environment non condensing Voltage limitation: 1500 V

Current limitation: 100 A

Compatibility

This functional module can be operated with all versions of the Core Unit (part code AAF-1001B, AAF-1002B, AAF-1003B)

Benefits

• Features positions for 20 μL Nucleocuvette^® Strips and 100 μL single Nucleocuvette^®
• Seamless transfer of conditions between different Nucleofection^® Vessels
• Electrically driven drawer for cuvette retainer

Applications

• Supporting Nucleofection of various cell numbers in different formats
• Substrate independent transfection of DNA, RNA, RNP's and proteins

Content & Storage

Content

1 Unit

Catalog #: AAF-1003X

Please email us at cs@medikonia.com for any enquiry. To place an order, please include the catalog number(s) of the product(s) in the email.
